HC 12

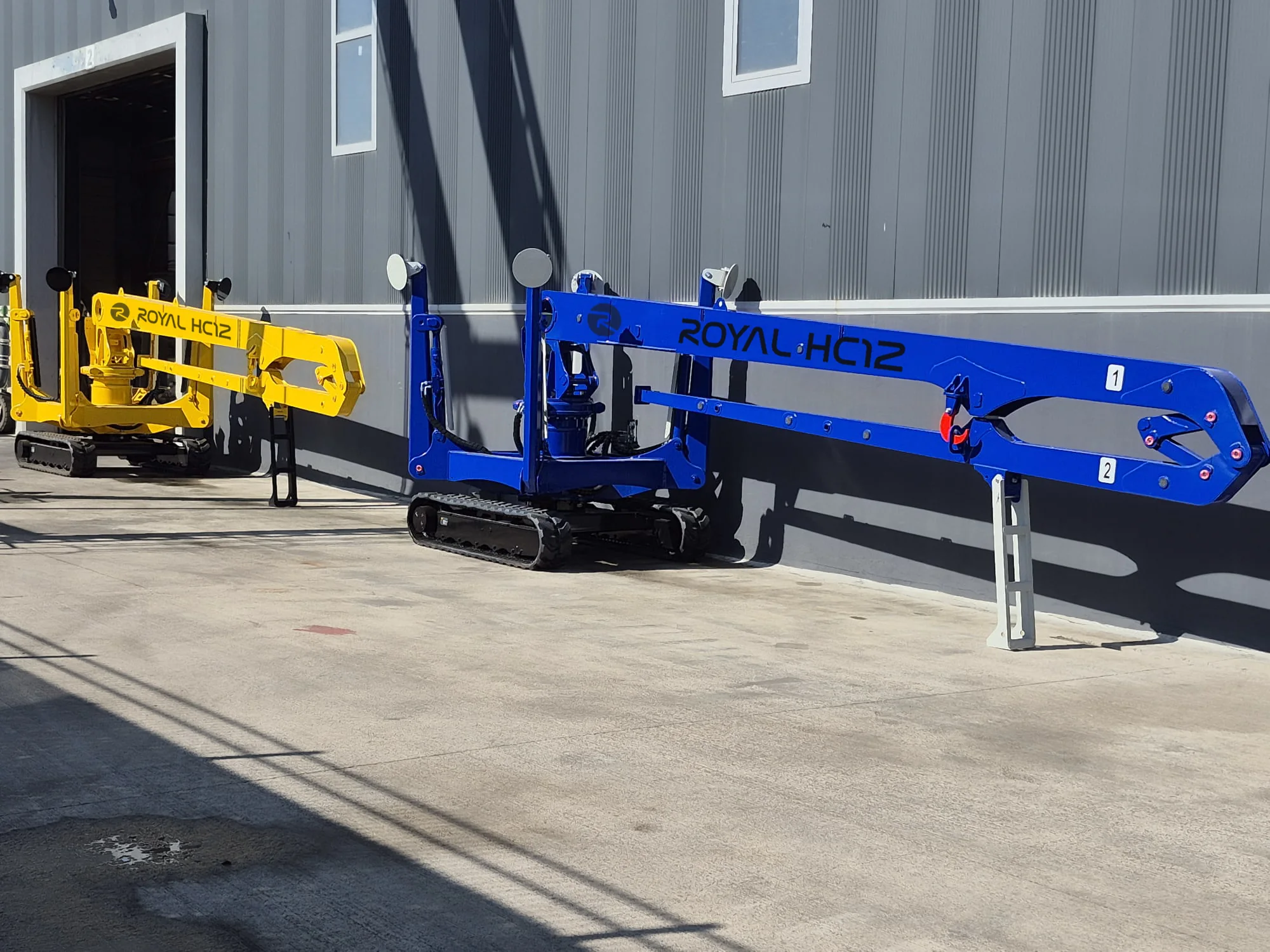

Track Spider Concrete Placing Booms

HC 12

HC 15-12 R2 PRODUCT FEATURES

  • HC 15-12 R has an opening boom length of 15 meters vertically and 12 meters horizontally and +3mt end hose.
  • Driving by Track ability
  • Wireless radio remote control proportional system
  • Hydraulic outrigger
  • Installation in tight spaces
  • Splittable tracks
  • 5mt unfolding height
  • 8 bar air pressure
  • Led lighting
  • Possibility to use as a hydraulic spider when necessary

WHERE IS HC 15-12 R2 TRACKED CONCRETE PLACER USED?

  • HEPP projects
  • Subway construction sites
  • Dam culverts and turbines
  • Creek reclamation
  • Bored pile concrete pourings
  • For projects with a ceiling height of 4 mt
  • Pre-stressed beam concrete pourings
  • Intermediate floor or factory field concrete
  • In areas where the mobile concrete pump cannot enter
  • In special projects – airport – such as bridge legs
REQUEST A QUOTE
HC 12
Track Spider Concrete Placing Booms

HC 12

Horizontal Reach

12 M
Vertical Reach

15 M
Working Area

452 M²
Machine Weight

3050 KG / 6650 LBS
Counterweight

750 KG / 1650 LBS
Total Weight

3800 KG / 8300 LBS
End Hose Length

3 M
Power / Voltage

7,5 KW, 400-480V, 3 PHASE
Engine Power

36 Hp
Track Spider Concrete Placing Booms

TECHNICAL DRAWINGS

  • PHOTO GALLERY
  • TECHNICAL DRAWINGS
  • GENERAL DESCRIPTION
  • TECHNICIAL SPECIFICATIONS
  • GALLERY AND TECHNICAL DRAWING
